Redesigned Advanced Programs Admin Guide

This article explains how admin can build and manage the advanced program in Journey Orchestrator.

Overview

The Redesigned Advanced Program of Journey Orchestrator enables you to create advanced programs more efficiently. It offers a simplified process and adds flexibility with the following benefits:

  • Increased Flexibility: The updated drag-and-drop program editor provides you with the ultimate flexibility to easily add or remove steps within the program.
  • Simplified Start: The enhanced source configuration provides easy creation of advanced programs. There's no need for participant mapping, allowing you to get started quickly and effortlessly.
  • Efficient Action Outcomes: The new inline action outcomes provide a more efficient and intuitive way to direct participants based on their interactions with program actions.
  • Seamless Survey Integration: Enables you to create survey steps alongside emails effortlessly. You can even incorporate multiple surveys within a single program.
  • Easy Evaluate Step: Enables you to easily manage complex logic and move participants to different branches based on conditions.
  • New User Interface: The new user interface guarantees straightforward navigation and product usage.

IMPORTANT

  • Both the old and new JO advanced program experiences work and will not impact any existing programs created using the old experience.
  • The migration of programs created using the old experience to the new experience or vice versa is currently not supported.

Advanced Program New Experience

To navigate to a new experience of an advanced program:

  1. Navigate to Digital Journey > Programs. The Programs tab appears.
  2. Click the Add Program dropdown.
  3. Select from the following options:
    1. Start with Templates: To get started quickly with ready-to-use advanced program templates.
    2. Advanced Program: To get started with the new advanced program creation.
    3. Simple Program: To get started with the new simple program creation.

For more information on simple programs, refer to the Add Participants to a Simple Program article.

undefined

  1. For the Start with Templates option:
    1. Select the required template.
    2. (Optional) Click Create from Scratch to navigate to the new program building editor for the advanced program.
    3. Click Use Template
    4. Update the information if required.
    5. Click Build Program. The program is ready to publish with the pre-configured information.

undefined

  1. For the Advanced Programs option:
    1. Select the New Version screen.
    2. Click Next. The Program Details window appears.

undefined

  1. In the Name field, enter the name of the program.
  2. In the Entity field, select if the Program is configured for Company, Relationship, or User.
  3. If a Relationship is selected in the Entity field, select the Relationship Type from the dropdown.
  4. (Optional) Enter a brief description of the program.
  5. (Optional) Select the folder in which you want to categorise the program.
  6. Click Create. The new editor for the advanced program appears.

New Advanced Program Editor

The new advanced program editor contains drag and drop capabilities enabling you to add the Actions or Conditions from the Elements section into the Editor section for building a program. You can also add the elements anywhere on the editor and connect the nodes of the elements by dragging one node onto another.

The first step of any advanced program is the Audience which is already present in the editor. You can add a source from the Audience step. For more information on how to add a source, refer to the Configure Step section.

undefined

Note:

  • You can drag and drop elements onto the unlinked, highlighted nodes or elements to automatically establish connections. Otherwise, you will need to make the connections manually in the editor by dragging the open node of the previous step to the new element.
  • Once the program is published, any open or unconnected nodes are considered as the end of the program.

Zoom, Undo/Redo and Rearrange

  • Minus (-): Click the Minus icon to zoom out on the elements in the editor.
  • Fit Screen: Click the Fit Screen icon to make elements appear in normal size.
  • Plus (+): Click the Plus icon to zoom in on the elements in the editor.
  • Undo: Click the Undo icon to revert the last modification made on the editor.
  • Redo: Click the Redo icon to restore the last modification made on the editor.
  • Rearrange: Click the Rearrange icon, to align all the steps vertically one after another on the editor.

Screenshot 2023-11-15 at 3.31.51 PM.png

Remove an Element

To remove an element:

  1. Hover over the element you want to remove. The Close icon appears.
  2. Click the Close icon. The element is removed but any nodes connected to that element are retained.

Screenshot 2023-11-15 at 3.32.05 PM.png

Conditional Wait

Previously, the conditional wait consisted of two sections - one for checking the outcomes of the previous step and another for checking a logical condition to branch participants with a common wait time.

With the new experience, the conditional wait is split into the following sections:

Action Outcomes

The Action Outcome enables you to branch participants based on their interactions with the actions. The following are the types of action outcomes:

To access the outcomes, click Show Outcomes on the editor. The branches and the wait period appear.

Screenshot 2023-11-15 at 3.32.24 PM.png

10 Days is selected by default as a wait period. Click Wait for 10 Days for the email to be opened to edit the wait period. It can be configured for Minutes, Hours or Days.

Screenshot 2023-11-15 at 3.44.41 PM.png

Email Outcomes

  • If the email contains a link with link tracking enabled, it has two possible outcomes: Link Clicked or Link Not Clicked. The system checks whether the email links were clicked or not clicked.

Note: Click the Link Clicked branch to configure the links.

  • All other emails have two possible outcomes:  Opened or Not Opened. The system will check whether the email was opened or not opened.

Survey Outcomes

All the Surveys have two possible outcomes: Responded or Not Responded. The system will check whether the survey was responded to or not responded.

CTA Outcomes

All the CTA have two possible outcomes: Closed or Not Closed. The system checks whether the CTA is closed or not closed.

API Outcomes

All the APIs have two possible outcomes: Success or Failed. The system will check whether the API connection was established successfully or not.

In-App Engagement Outcomes

All the In-app engagements have two possible outcomes: Completed or Not Completed. The system will check whether the end user completed the configured in-app engagement or not.

Customer Education Outcomes

 The customer Education action has two possible outcomes: Completed or Not Completed. The system will check whether the end user completed the assigned course or not.

Evaluate

The Evaluate helps to create complex conditions and move your audience into multiple branches.

Example Business Usecase: Consider a scenario where you need to tailor your customer engagement strategies based on their Survey or NPS responses. With Evaluate, you can create branches for Promoters, Passive responders, and Detractors according to their NPS feedback. This allows you to construct the journey: for Promoters, you can set up a Thank You email; for Passive responders, you can implement an automated follow-up message; and for Detractors, you can add a manual intervention, like a Call to Action (CTA) for the Customer Success Manager (CSM) to engage directly, addressing their concerns and improving their experience.

Screenshot 2023-11-15 at 3.45.15 PM.png

Defining Multiple Branches

To add multiple branches with defined conditions:

  1. Drag and drop the Evaluate condition from the Elements section to the editor.
  2. Click the Evaluate element on the editor to configure. The Evaluate slide-out panel appears.
  3. Select the option to evaluate from One Time or Multiple Times
  4. For the Recurrently option, enter the number of days for evaluating configured branches repeatedly every 11 hours.
  5. Click Add Condition.
  6. Select the conditional fields from the following available options:
  • Audience Field
  • Calculated Field
  • Previous steps (only supported for Email link not clicked, CTA Closed, and Survey not responded if they are present in the path where Evaluate step is connected)
  • Survey Questions (available when a survey is added to the program)
  • Event Field
  • Define the conditions for each branch.
  1. If none of the conditions is met, the audience is moved to the Remaining branch.
  2. Click Save.

Screenshot 2023-11-15 at 3.45.33 PM.png

Configure Step

The step configuration is revamped making it easy to set up a program. Set up the following configuration for your program:

Audience

Audience step allows you to add participants to the program. Add the audience to your program through the following sources:

  • Segments
  • Data Designer
  • Query
  • CSV
  • Events

Each program can have only one source. For segment or data designer sources, you can select just one segment or data designer. However, for a CSV source, you have the ability to upload up to five CSV files within a single program.

To select a data source:

  1. Click the Audience step on the Programs Editor page. The Audience slide-out pane appears.

undefined

  1. From the Source tab, select the required source:

    1. For the Data Designer or Segments sources, select the required Data Designer or Segment from the drop-down list.

    2. For Query source,

      1. Click New Query Setup. The query creation page appears.

      2. Select a Data Source. The objects in that data source appear.

      3. Drag and drop the required objects and create a query.

      4. Click Save & Sync.

    3. For Events source:

      1. Select the required Event Topic.
      2. Select the required Event.

      3. Select the Event Version

      4. Click Done

        Note: When Events are used as a source, you can change the data types of each field in Source Fields using the dropdown menu next to each field.

        For more information on events, refer to the Add Participants to a Program article.

    4. For the CSV source, upload a CSV file.

      Note: You can upload a maximum of five CSV files.

  2. Click Done. The mandatory fields are identified and the uniqueness criteria are auto-selected. All fields from the source are available for tokens and conditions selection, without the need for field mapping.

  3. Wait for the selected source to load and the audience to be synced.

undefined

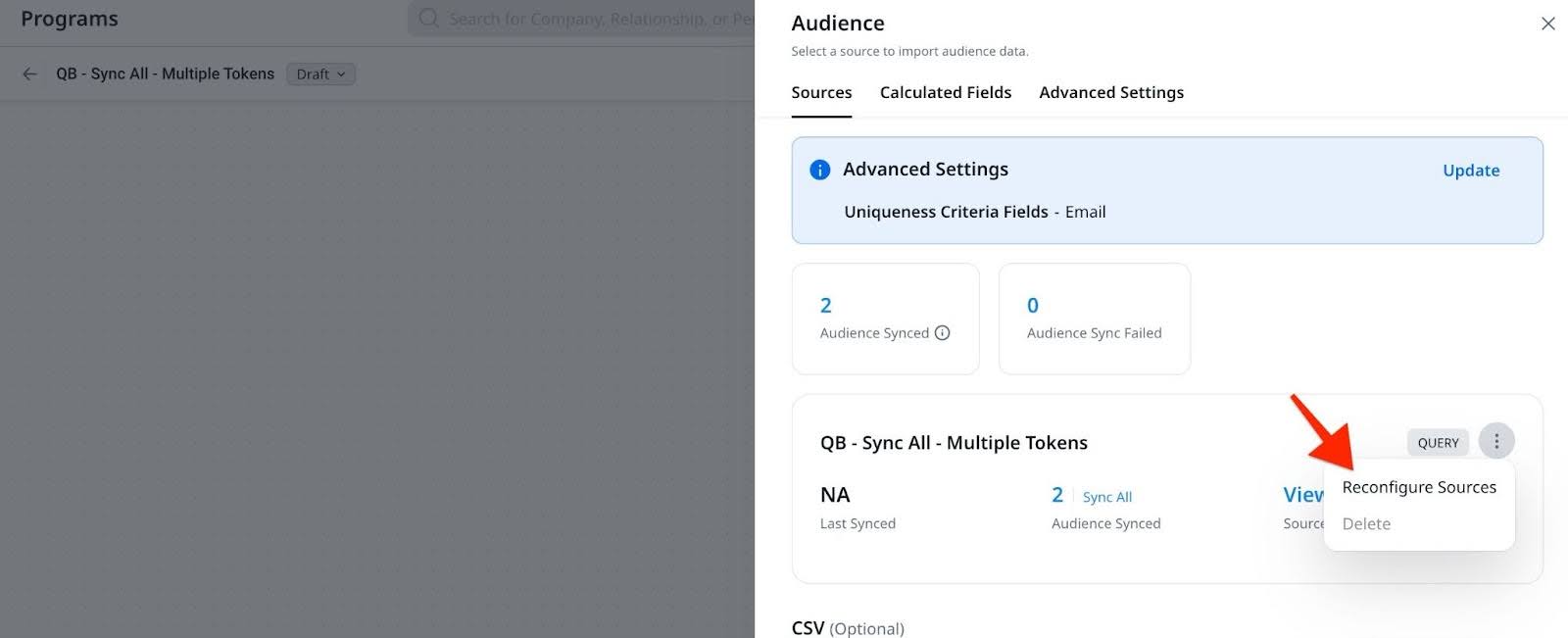

  1. Click Sync All to synchronize all the remaining participants to the program.

  2. (Optional) Click the Audience Synced number to view the synced audience.

  3. (Optional) Click the View option in Source Fields to view the fields used as tokens in the program.

Notes:

  • You can view the Source Fields that can be used to modify the data types when a CSV is added.
  • Initially, only 20 participants are synced, click Sync All to synchronize all participants.
  1. You can upload additional CSVs to add more participants to the program.

Notes:

  • A maximum of five CSV files can be uploaded to any source.
  • The CSV to be uploaded can be created manually, but the file must contain the same number of columns and column names as the previous source. Alternatively, you can export the CSV file from the Audience Synced section and remove the following columns to match the CSV columns with the previous source: Participant ID, Participant State, and Participant Type. Additionally, rename the column headers Company Id and Recipient Email Address with the field names present in the previous source.
  1. Click Update to modify the program's advanced settings. The Mandatory Fields, Uniqueness Criteria Fields, Audience Re-entry Criteria, Advanced Criteria, Audience Exclusion list, and Action Execution Schedule configurations can be updated.

undefined

Note: The Exclusion list will only apply to the Email Address field; participants will not be excluded if we select any other non-email address fields.

Action Execution Schedule

The Action Execution Schedule feature helps admins set the schedule for when actions such as emails, surveys, and APIs should be executed for the customers. Admins can easily set the day, time, and timezone for the action execution for the entire program using just one source for all participants.

Example Business Use Case:

Admins can set the day, time, and timezone for the entire program, sending all emails during business hours (e.g., between 9 AM to 5 PM) or at a specific time of the day.

To set the action execution schedule:

  1. Click the Audience step on the Programs Editor page. The Audience slide-out pane appears.
  2. Click the Advanced Settings tab.
  3. Click the Action Execution Schedule dropdown.
  4. Select the days when the action is to be executed.
  5. Select the time range when the action is to be executed.

Notes:

  • Ensure that minimum three hours of time range is selected for the action schedule.
  • Participants who do not meet the time window criteria specified at the beginning of the process will be moved to the next window. For instance, if the schedule is set from Monday to Friday, 8 am to 1 pm, and 1000 participants did not enter the action before the end time of the schedule on Friday, they will wait until Monday for the action to be executed.
  1. Select the Timezone option:
    1. Select the Participant’s Timezone option to use the participant's local timezone.
    2. Select the Common Timezone option to use the common timezone for all participants.
  2. Fill in the required information for the selected timezone option:
    1. For the Participant’s Timezone option, select the participant’s timezone and Fallback Timezone.

      Note: To use Participant’s Timezone option, Timezone field must be included in the selected data source for executing the action at the participant’s timezone.
    2. For the Common Timezone option, select the common timezone for action execution.
  3. Click Save.

undefined

Email/ Survey

Email or Survey action allows you to configure Email or Survey in the selected template. Just like emails, now you can add surveys to your program. Multiple emails and surveys can be added to the program.

Note: Currently, surveys can only be distributed through email. However, with future releases, in-app distribution using Gainsight PX will also be available.

To configure an Email or a Survey action:

  1. Drag and drop the  Email or Survey actions from the Elements section to the Programs Editor page.
  2. Click the required Email or Survey element on the editor to configure. The configuration page appears.
  3. Select the template.
  4. (For Survey action) In the email body, click the survey from the added link or button.
  5. The unmapped tokens are displayed in yellow color. Click the token to map. The Source Fields list and Calculated Fields list appear.
  6. Select the field to map with the token.
  7. (Optional) Click Preview to preview the email.
  8. (Optional) Click Send Test Email to send a test email to ensure that the template appears correctly in the recipients’ email.
  9. Click Save. The email or survey action configuration is saved.

Screenshot 2023-11-15 at 3.59.42 PM.png

CTA

CTA action allows you to create or close the CTA in the program. To add CTA action in the program:

  1. Drag and drop the CTA action from the Elements section to the Programs Editor page.
  2. Use one of the following options to create a new CTA or close an existing one in the program.
  • Click the Create CTA option to create a new CTA for the company person (or)
  • Click the Close CTA option to close the created CTA in the program.
  1. Click Done.

Note:

  • The CTA option selection step is irreversible. To change the option you need to create a new CTA action.
  • Gainsight does not support Calculated fields as the Owner field in CTA steps.

Screenshot 2023-11-15 at 4.00.20 PM.png

API

The Call API Action type enables admins to establish a connection between Gainsight and external systems through a request action from the external system using an API.

Example Business Use cases:

  • Admins can send NPS® surveys and relay responses to collaboration platforms like Slack.
  • Admins can send CSAT surveys and forward responses to external ticketing systems such as Zendesk.
  • Admins can alert external systems when the Customer Health Score drops by a specified percentage, including actions like creating a CTA.

Prerequisite

The following are the prerequisites to use the API action type:

  • The connection between Gainsight and external systems must be created.
  • The API Action type for the connection must be configured.

For more information on how to configure the connection and action, refer to the Configure Custom Connectors and Configure External Actions sections in the Configure External Action from Gainsight article, respectively.

To configure the API action:

  1. Drag and drop the  API action from the Elements section to the Programs Editor page.
  2. Click the required API element on the editor to configure. The API configuration slide-out panel appears.
  3. From the Connectors dropdown, select the API connector
  4. From the External Action dropdown, select the API Action.
  5. (Optional) In the Description field, add an API description.
  6. (Optional) Click the Create Connection or Create Action options to create a new connection or action, respectively.
  7. In the Field Mapping section, select the respective Source Fields to map with the Action Fields
  8. Click Save. The API action configuration is saved.

Screenshot 2023-11-15 at 4.00.49 PM.png

PX Engagements

Gainsight integrates Journey Orchestrator (JO) with Gainsight PX. You can trigger PX in-app engagements from Programs, and take action based on the engagement events in Programs. You can further analyze and measure the Program and Engagement effectiveness. This integration helps customers achieve a unified customer engagement strategy by leveraging the best of both JO and PX applications.

Notes:

  • The PX Engagements cannot be configured for programs with a User entity.
  • By default, this feature is enabled for all the customers who have CS and PX subscriptions.

Prerequisite

The following are the prerequisites to in-app engagement action:

  • Customers must have subscriptions for both the Gainsight Journey Orchestrator module in the CS application and also the Gainsight PX application.
  • Configure the PX Connector in the Gainsight CS application. For more information, refer to the Gainsight PX Connector article.

To configure the in-app engagement action:

  1. Drag and drop the  PX Engagement action from the Elements section to the Programs Editor page.
  2. Click the required PX Engagement element on the editor to configure. The PX In-app Engagement configuration slide-out panel appears.
  3. If there are multiple PX instances connected, then select the connection from the Connections dropdown. The connection can also be changed from the dropdown field on the top-right corner in the engagements listing view.

Note:

  • The programs can only have one PX connection. If a different connection is selected, it also updates the connection details of all the previous engagements created.
  1. Only Active engagements are listed. They can be searched, sorted, or filtered based on Product, Channel, Engagement Type, Labels, or EnvironmentsundefinedThe engagement cards are emphasized when hovered over, and the different steps of the engagement, if present, will auto-play in a carousel. Each of the engagement cards also provides information on the Engagement Name, Type, Product, Channel, Labels and Environment.
  2. Click Preview on the card to view the engagement steps in detail along with other engagement information such as Schedule, Qualification Rule and Throttling.
  3. Click Save to select the engagement. The selected engagement is shown in the listing view.

Slack

Admins can access Slack as an action within the Advanced Programs configuration. The Slack integration within Journey Orchestrator provides the following capabilities:

  • Easy Selection of Slack Channels and Workspaces: Choose from available Slack channels and workspaces for directly posting messages through Journey Orchestrator.
  • Comprehensive Message Customization: Draft impactful messages with formatting options and tokens for adding customer-specific data.
  • Insightful Analytic Reports: Access reports in Journey Orchestrator's Analytics for detailed insights into each participant's message delivery status.

Prerequisite:

To use Slack action in Journey Orchestrator, ensure the out-of-the-box Slack Connector is set up and to authorize the Slack app from Gainsight for integration requires Slack admin permissions.

For more information on how to set up a connector, refer to a Preparation of Connector Jobs article.

To configure the Slack action:

  1. From the Elements section, drag the Slack action to the Programs Editor page.
  2. On the Programs Editor page, click the required Slack element to open the configuration slide-out panel.
  3. From the Connection drop-down list, select the required connection.
  4. Search for and select the channel in which you need to post a message.
  5. In the message box, compose your message.

Note

  • In the message box, markdown language is supported for formatting, such as italic, bold and strikethrough.
  • Using @ in the message box allows you to add customer data as tokens.
  1. Click Save. The message is delivered when the program runs.

undefined

Customer Community

Customer Community (CC) enables admins to assign badges, enhancing touchpoints with customers and making it easier to engage with them throughout their journey.

Prerequisite:

  • SSO must be enabled in your instance to use CC action. To enable SSO in your instance, contact Gainsight support.
  • A Customer Community connection must be created on the Connectors page to access CC actions in Journey Orchestrator.

For more information on how to set up a connector, refer to a Customer Communities and Gainsight Integration - Admin Guide article.

To configure the CC action:

  1. From the Elements section, drag the CC action to the Programs Editor page.
  2. On the Programs Editor page, click the required CC element to open the configuration slide-out panel.
  3. From the Badges drop-down list, select the required badge to assign to the program participants.
  4. Click Save. The CC action configuration will be saved.

undefined

Note:

  • During the program run, if a participant in the JO program is not present in CC, they will not be dropped from the program. Instead, the CC step will be skipped for that participant, and they will move to the next configured step in the program.
  • Admins can see the status of the badge assignment in the Step-wise report under Action Status in program analytics.

Customer Education

Customer Education (CE) enables admins to assign courses, enhancing touchpoints with customers and making it easier to educate them throughout their journey.

Prerequisite:

  • SSO must be enabled in your instance to use CE action. To enable SSO in your instance, contact Gainsight support.
  • A Customer Education connection must be created on the Connectors page to access CE actions in Journey Orchestrator.

For more information on how to set up a connector, refer to a Customer Education (CE) Integration article.

To configure the CE action:

  1. From the Elements section, drag the CE action to the Programs Editor page.
  2. On the Programs Editor page, click the required CE element to open the configuration slide-out panel.
  3. From the Connection / School drop-down list, select the required connection.
  4. From the Course drop-down list, select the required course.
  5. Click Save. The CE action configuration will be saved.

undefined

Note:

  • During the program run, if a participant in the JO program is not present in CE, they will be dropped from the program.
  • Admins can see the course completion stats on the program analytics page under the Overall Performance report.

Publish the Program

  • To publish a program, ensure that all the warnings in the program step configurations are resolved.

  • Once resolved, the publish button will be enabled. You can publish the program immediately or schedule it for a future date.
  • Additionally, you can choose to execute the program repeatedly by selecting the Multiple Times option. The calendar view allows you to check if any existing programs are running or scheduled.

Screenshot 2023-11-15 at 4.41.02 PM.png

Note: Advanced Programs that are scheduled can be reverted to the draft state, allowing for further modifications before finalizing. Administrators can make necessary adjustments to the program content and reschedule it as needed.

To move the scheduled program to draft state:

  1. Navigate to  Digital Journey > Programs.
  2. Click any scheduled Advanced Program.
  3. Click Move To Draft.

undefined

Analytics

The Analytics tab appears at the top panel once the program is published. It enables you to monitor the participants' actions with your program and allows you to view the corresponding participants' list by clicking on the available metrics.

Screenshot 2023-11-15 at 5.45.34 PM.png

The Snapshot toggle switch appears on the Model tab after the program is published. Turn ON the Snapshot toggle switch to view the progress of the program audience at each step. The number of participants will be shown at each step and you can click to see the list of participants.

Screenshot 2023-11-15 at 4.41.21 PM.png

View Participant’s Activities

Admins can access an overview of participant activities within a program through the Analytics tab. This feature allows admins to monitor each participant's actions and progress. Moreover, in instances where participants are dropped from the program, it provides insight into the reasons for their removal.

To view participants activities:

  1. Navigate to Digital Journey > Programs.
  2. Click the required program having an Active status.
  3. Select the Analytics tab.
  4. In Overall Performance section, click Participants widget. The Participants window appears.
  5. Click the required Participant’s ID. The Participants Activities window appears.
  6. (Optional) Click View Failure Reason to display the reason why the participant has been dropped from the program.

undefined
